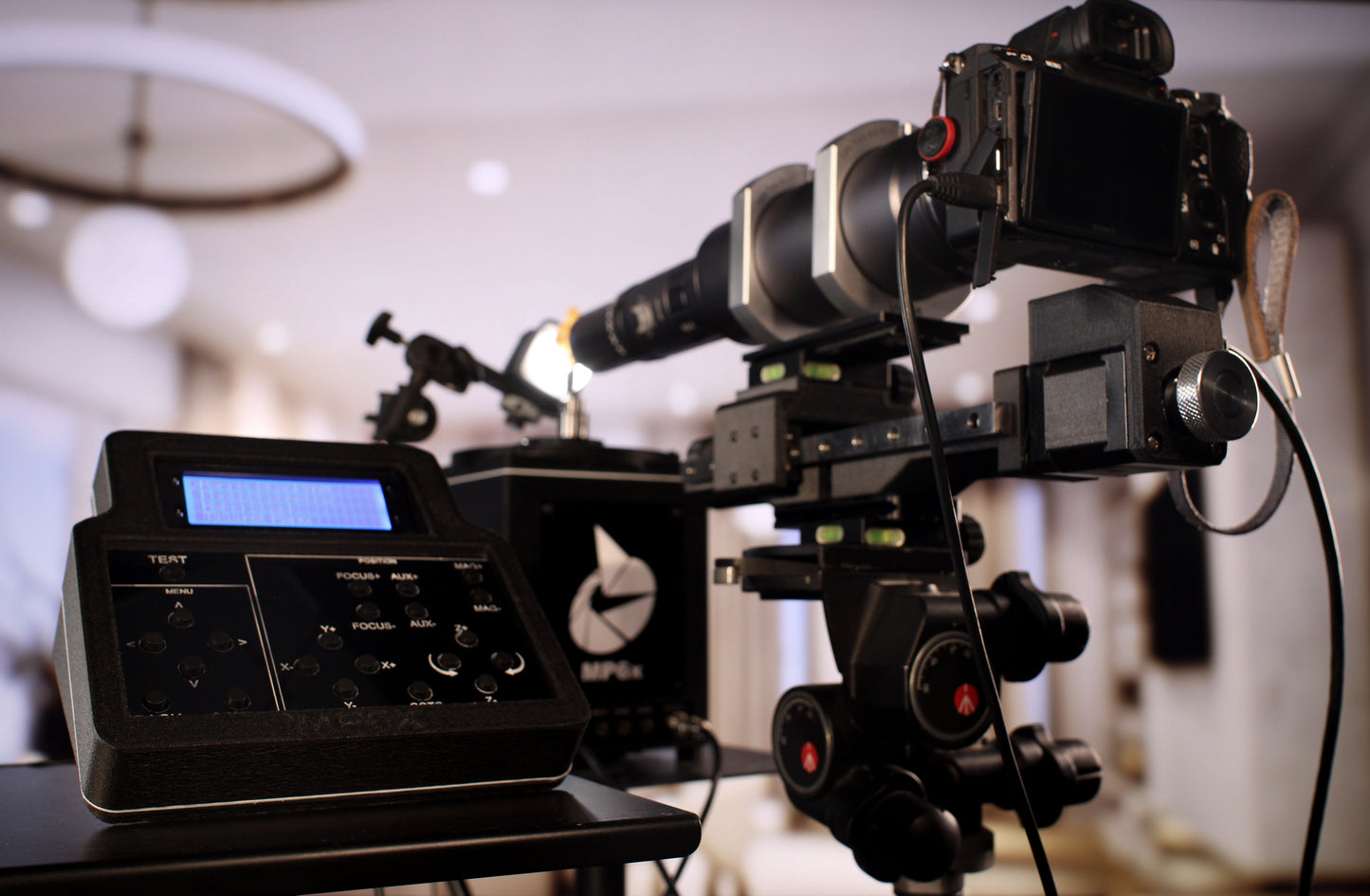

M1 Focusing Rail

M1 Focusing Rail

$650.00 USD
$650.00 USD
Sale Sold out
Shipping calculated at checkout.

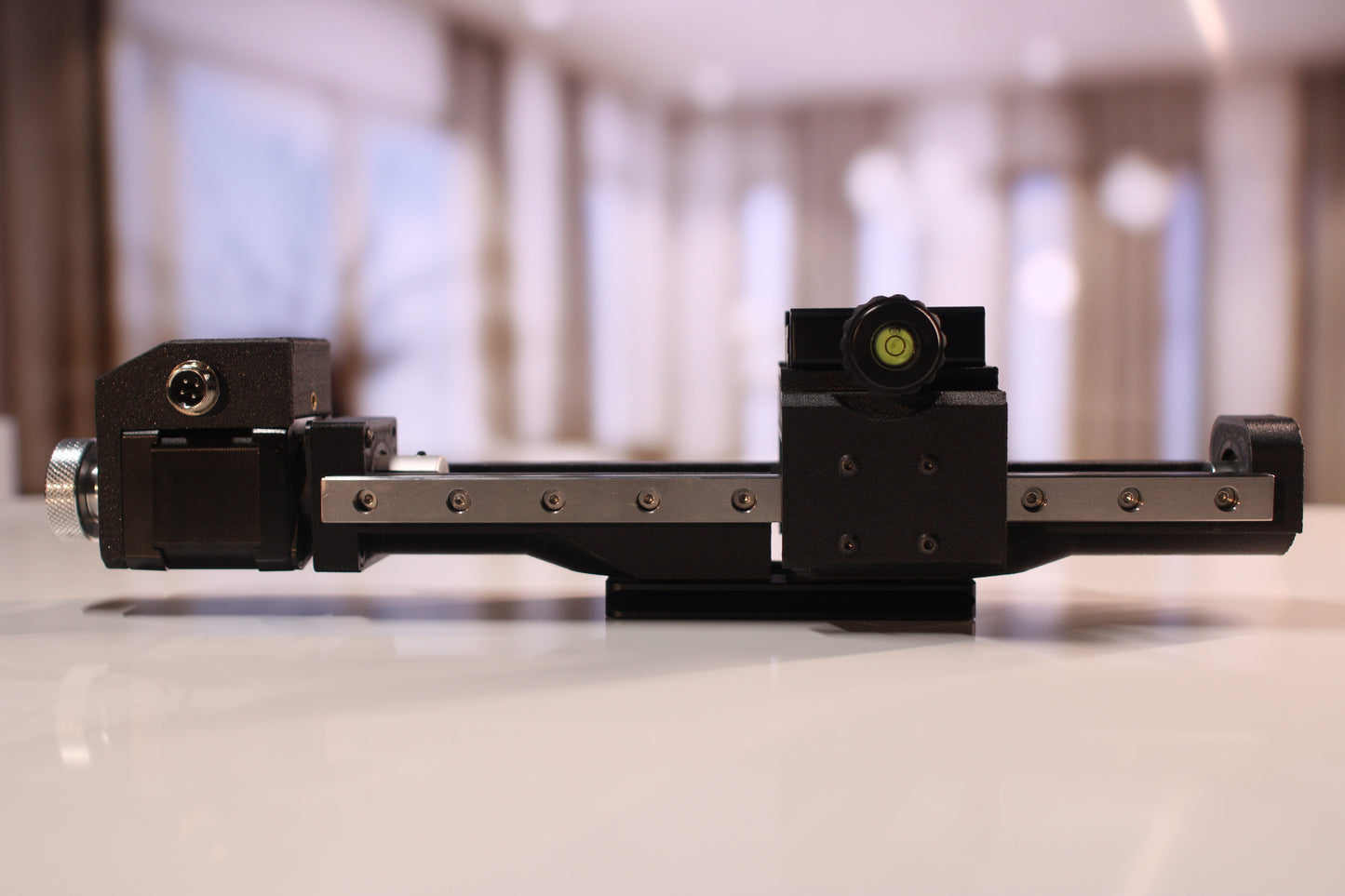

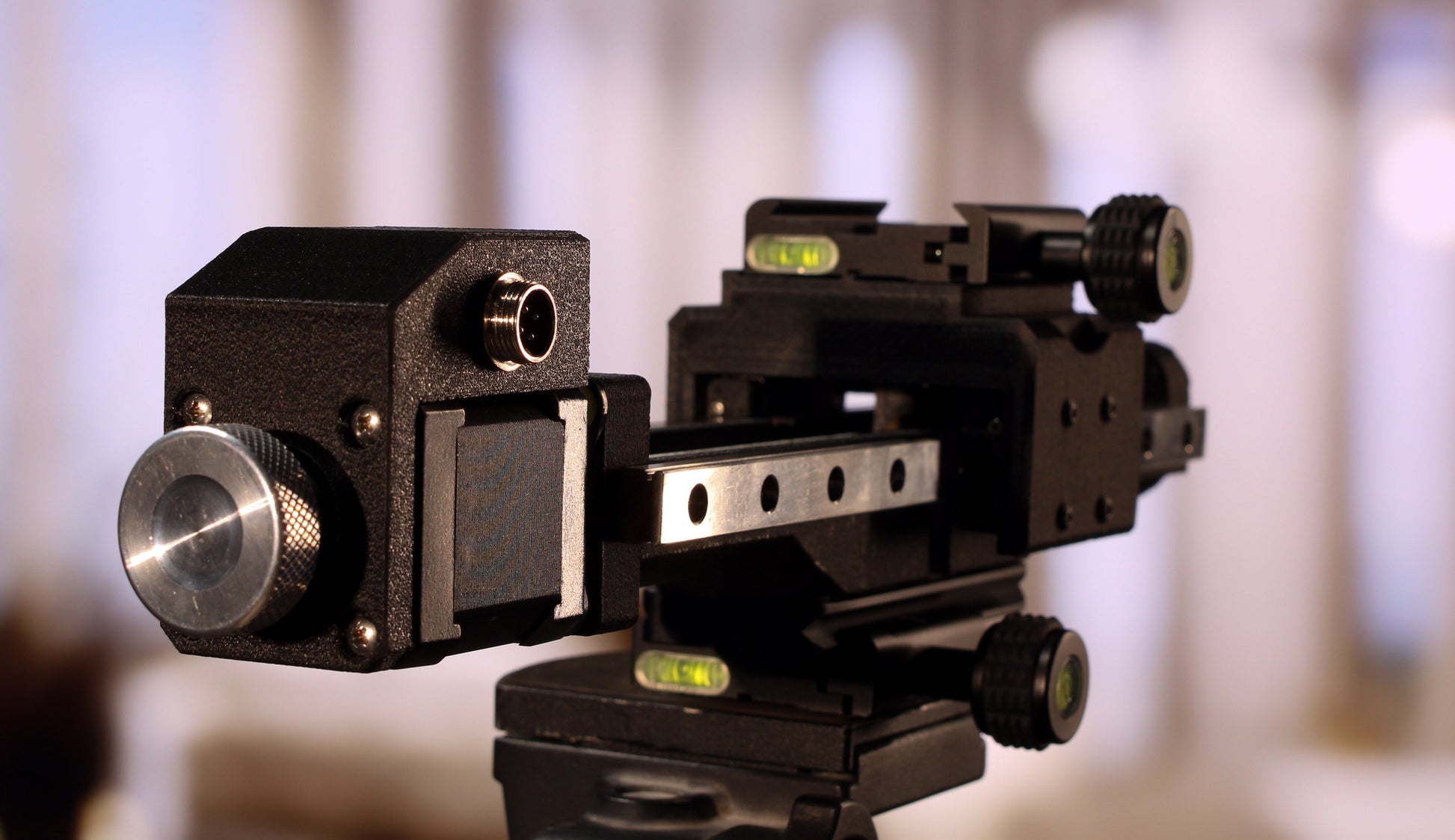

The all new M1 Focusing rail from The Chronos Project.

The M1 Rail was designed as a no compromise focusing rail. Rather than relying on inexpensive 3d printer bearings we opted to use high quality industrial grade linear bearings for ultra precise movements with even heavy payloads. To help ensure the best experience at ultra high magnifications (50x +) the M1 features an anti vibration damper to reduce any mechanical vibrations . The robust frame is constructed of engineering grade Glass Fiber infused ABS, ensuring a lifetime of excellent performance in the most demanding of environments.

Features

  • 150mm Travel
  • Twin high quality linear bearings
  • Anti-backlash nut
  • 0.9 degree stepper motor
  • 0.15 micron movement resolution
  • Antivibration Damper
  • Dual bubble levels
  • Hand wheel for manual movement.
  • Upper arca style clamp
  • Lower Arca style rail.



View full details

Driver Options

  • TB6600 Drivers

    The most budget friendly configuration, the TB6600 is perfect for precise realtime movements and controlling motors up to Nema 23.

    • 5-39VDC
    • 0.5 to 4 Amps per channel
    • Up to 32x Microstepping (6400 steps / revolution)

  • DM542T Drivers

    A step up from the TB6600, the DM542T drivers have extra power and higher precision for more demanding scenarios. Capable of driving motors up to Nema 34.

    • 5-48VDC
    • Up to 4.5 Amps per channel
    • Up to 128x Microstepping (25600 steps / revolution)

  • Gecko 210x

    For the highest power demands the Geckos can handle Nema 34 and 42 with ease.

    • 5-80 VDC
    • Up to 7amps per channl
    • 5X microstepping (2000 steps / revolution)
